Technicial Specifications
BRS FULL CARPET WASHING MACHINE TECHNICAL SPECIFICATIONS | |||
MODEL | BRS 260 FULL | BRS 320 FULL | BRS 420 FULL |
Voltage | 3~ 380V | 3~ 380V | 3~ 380V |
Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
Total Power | 17kw | 17kw | 19.2kw |
Brush Piece | 8 Disc, 2 cylinder brush | 8 disc, 2 cylinder brush | 10 Disc, 2 cylinder brush |
Control System | PLC control | PLC control | PLC control |
Control Panel | Touch Panel | Touch Panel | Touch Panel |
Brush Speed | 140 rpm | 140 rpm | 140 rpm |
Band Speed | 3-5M/min | 3-5M/min | 3-5M/min |
Washing Capacity | 120-150m2/hour | 170-230m2/hour | 250-350m2/hour |
Washing Width | 2630mm | 3200mm | 4200mm |
Under Wash Option | Yes | Yes | Yes |
Rinsing | Yes | Yes | Yes |
Carpet Roller | Yes | Yes | Yes |
Scraper | Yes | Yes | Yes |
Fiber Body | Optional | Optional | Optional |
Pressure | Optional | Optional | Optional |
Vacuum | Optional | Optional | Optional |
Hourly Maximum Water Consumption | 0-100 lt | 0-100 lt | 0-100 lt |
Maximum Detergent consumption per hour | 0-45 lt | 0-45 lt | 0-45 lt |
Sizes | 3200*2300*2000 | 3800*2300*2000 | 4700*2300*2000 |
Weight (kg) | 1650 | 1900 | 2150 |

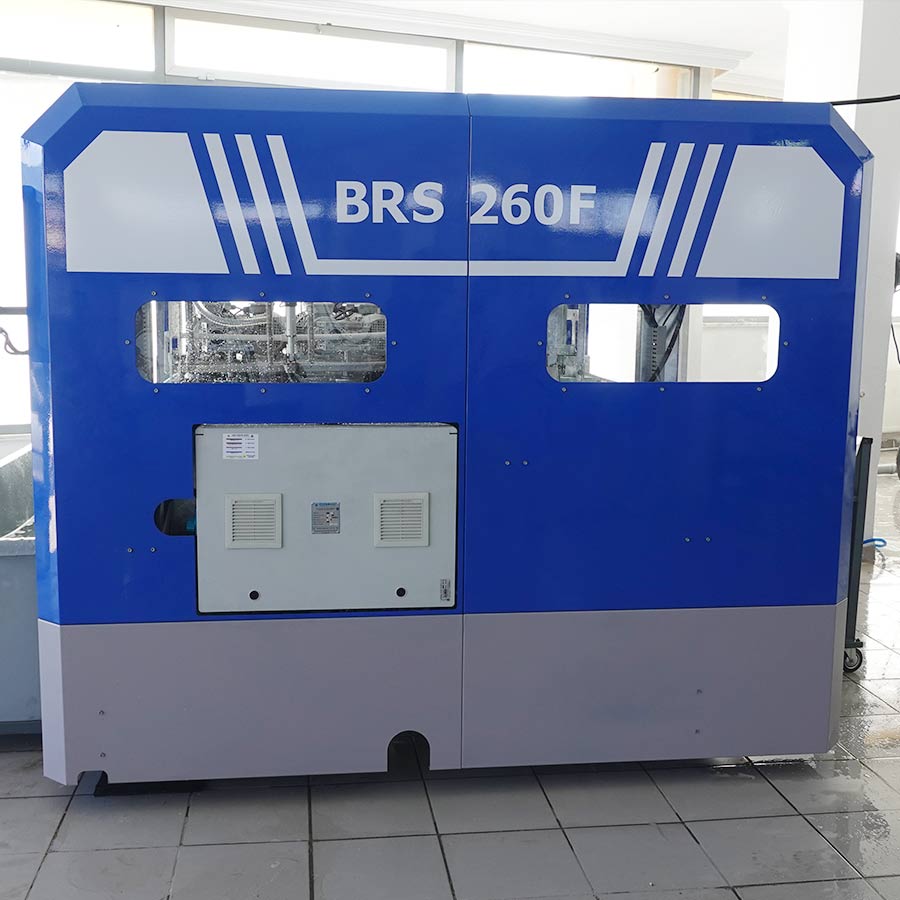

FİBER BRS 260 F | 3100 * 3320 * 2100mm | ||
BRS 260 F SHEET IRON | 2500 * 3230 * 2000mm | 1450 KG | |
BRS 320 F SHEET IRON | 2500 * 3800 * 2000 mm | ||
BRS 420 F SHEET IRON | 2500 * 4800 * 2000mm |
General features
Model separation in full automatic carpet washing machines is made in terms of power and size.
It must have all the necessary features in order to serve various carpet sizes.
Adequate pressure setting, configuring the detergent and water installation to affect the entire surface of the carpet, and providing proficiency in many other technical issues are the basic building blocks of professional carpet washing.
It is a very important feature when performing carpet washing with the carpet roll winding feature in full automatic carpet washing machines.
Wrapping the wet carpet, which is one of the most energy-consuming moments of the employees, does the job easily.
It automates the processes by transferring it to the carpet transport vehicles.
Do not forget that with the right configuration and selection of the right carpet washing machine, you can make the processes very easy.
In the past, a process such as giving the back side of the carpet to the machine was applied to make the underwash.
Today, with the development of technology, carpet washing machines with bottom washing feature have been produced.
With its rinsing feature, it helps to throw away the carpet washing shampoo on it, and with the squeegee (scraper) it is ensured that the dirt that comes to the surface is removed from the carpet.
Full automatic carpet washing machines can be configured with many optional features.
Fiber body can be used instead of stainless body, machine costs can be reduced a little more.
The amount of pressure can be adjusted.
The vacuum feature can be adapted if desired.

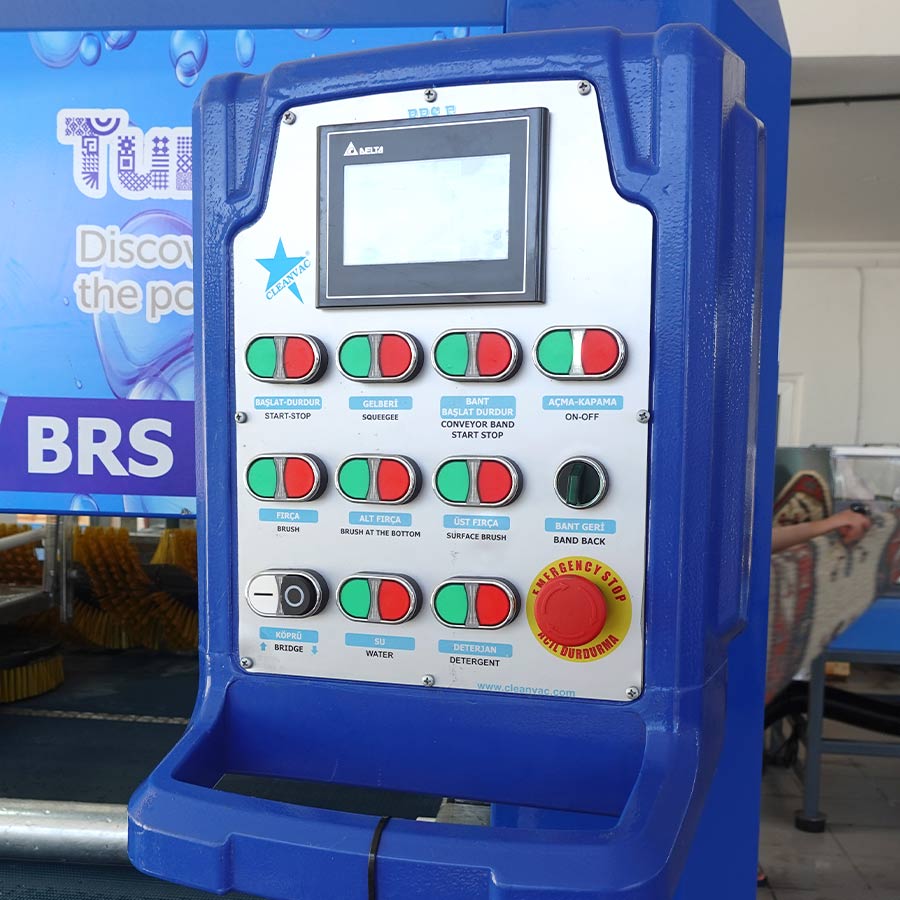

Full automatic carpet washing machines provide convenience with its touch panel.
Instead of complex button configurations, it comes to you with the help of a 10" touchscreen LCD panel and a superior security control system.

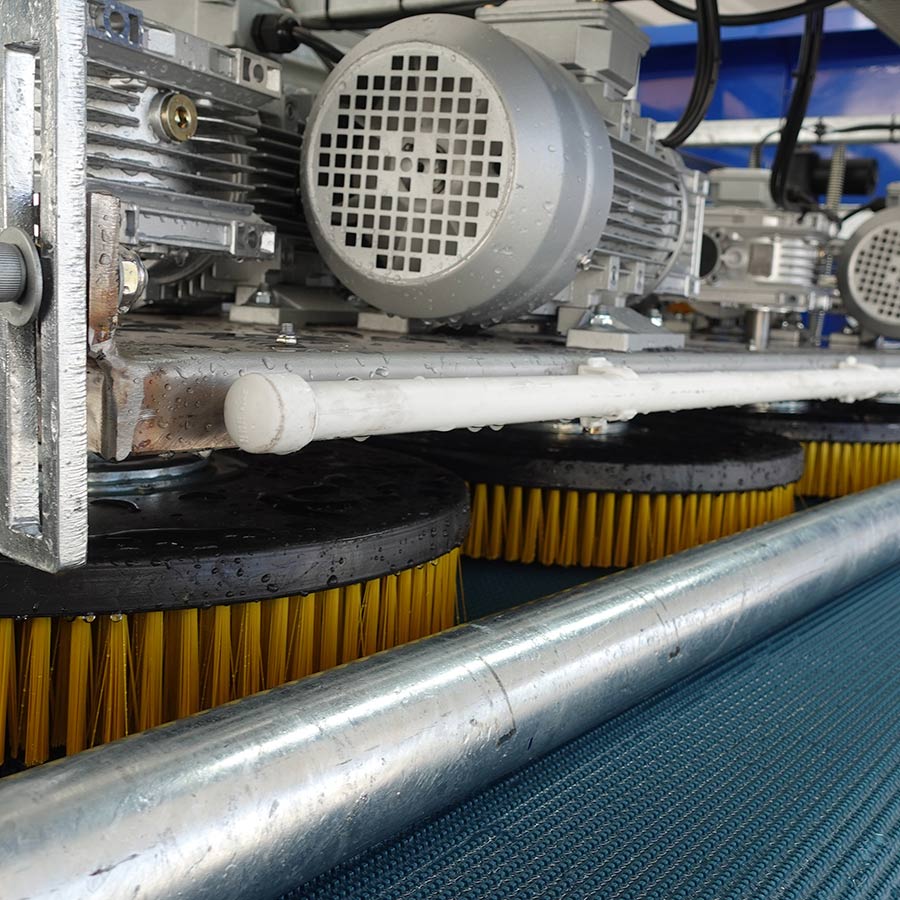

It offers the best brushing experience you can get with its 140 RPM brush rotation speed.
The 4 brushes in the machine reach the entire carpet surface and do not leave a single pile that is not brushed.
Adjustable belt speed is between 1 meter and 3 meters per minute. It can wash two carpets or 2 runners at the same time with a washing width of 2.60 meters.
Thus, it provides the opportunity to save time and labor.
The fully automatic carpet washing machine, which requires 380 V industrial electrical installation, consumes 8.1 kW/Hour in total.
Despite this energy consumption, it can reach a washing capacity of 100 - 140 m2 per hour.
In terms of consumption characteristics, it can consume 100 LT water per hour and 0-45 LT detergent per hour.
These consumption characteristics may vary according to carpet dirt or usage preferences.
You can significantly reduce these consumption features with a few operations before washing.
Just before the carpet is given to the machine, it can be soaked in the water in the pool for a while, and the stain, dust and dirt can be softened.
In this way, less water and less detergent consumption is realized.
Since this will require a shorter processing time, it will also reduce the amount of energy your machine will consume.
With nozzles that reduce water consumption and ensure that every centimeter of the carpet is evenly wetted, the water is transmitted under pressure, not in the form of flood irrigation, ensuring that it is wetted just before brushing while it is on the move.
These nozzles are sucked into the surface by changing the way the water comes out and putting it in the way that it will affect the carpet surface the fastest.
In general, the technical features of fully automatic carpet washing machines are based on the knowledge gained through long years of research and experience in the sector.
Full automatic carpet washing machine, galvanized sheet metal is used in the exterior cladding structure.
About Product
As Kartek Makine, what do we have in our machine?
Carrier body with 4 mm+ thickness and guaranteed non-corrosion.
Production with the desired number of brushes.
Scraper system.
Under-carpet washing feature.
Automatic detergent and water spraying.
Digital touch screen.
Industrial strength and compact design.
Waste water collection pond under the washing section.
Special twisted body with 4 mm+ thickness.
Polyethylene carpet resting pool.

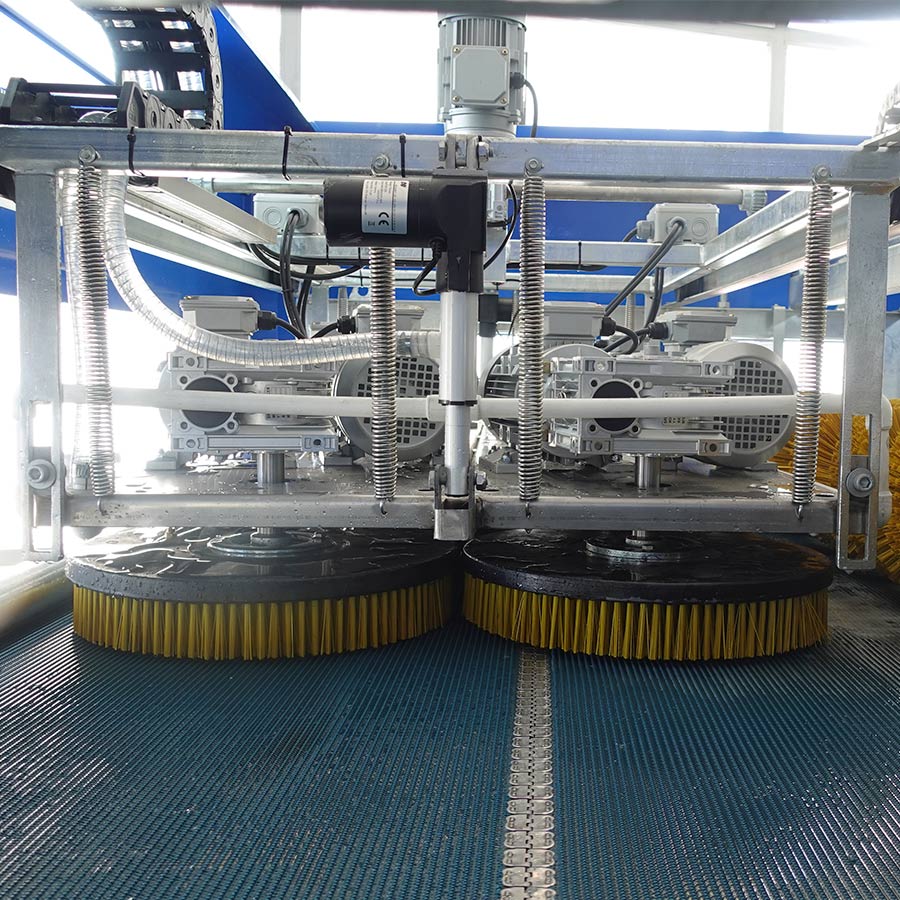

Brush pressure adjustment possibility according to the thickness of the carpet.
Washing speed adjustment according to the carpet dirt condition.
Tape rewind adjustment. (If you don't like the washed carpet, it will bring it back by backwashing with one click)
The best carpet washing machine tells you where the problem is written on the screen in case of any electronic malfunction.
It rolls the carpet at the exit.
Even female staff can use it easily.
It does not need physical strength.
The outer cladding can be customized with a fiber body if desired.
As it has a pool of its own, there is no need to allocate an additional pool.
Scraper is available, it is the most beneficial stage of the carpet cleaning process.
For this reason, if there is no system that provides squeegee in full automatic carpet washing machines, we cannot be considered to have fully cleaned.

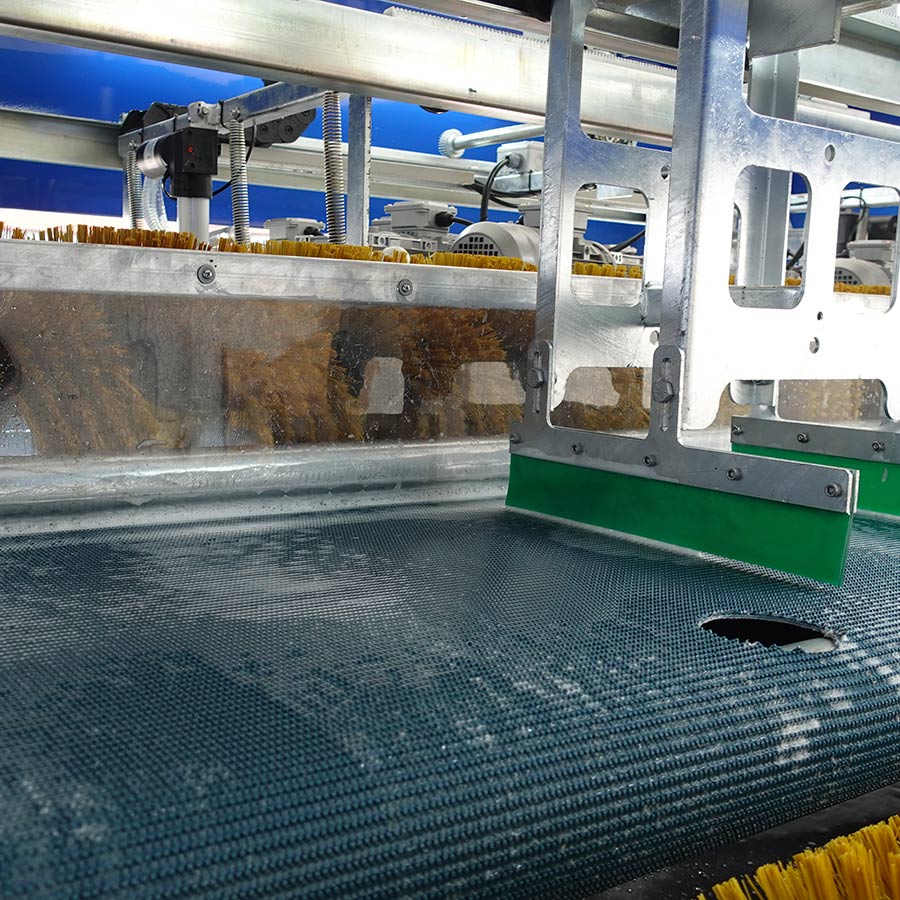

For this, the squeegee stripping system positioned behind the 4 disc brushes and roller brushes starts its duty where all brushing ends.
It squeezes the pressurized water, then it is ensured that the dirt and dust that has been brought to the surface of the carpet with a rubber stripping band are scraped off and removed from the carpet.
Since it performs this process by going back and forth on the carpet, double-sided stripping takes place.
No inch of the carpet can pass to the roll wrapping process without going through this process.
As can be seen in the videos of our product introduction page, the fully automatic carpet washing machine is designed for the convenience and ease of use of the employee in terms of the process.
It is the basic building block of catching the most work volume with the least energy consumption.
The presence of this machine in your carpet washing business provides a more durable and long-lasting service than other machines.
Full automatic carpet washing machines, powered by the emergency safety system, are designed to prevent possible work accidents by cutting all the energy on the system with the emergency stop button.
With its accessible location, it can be intervened quickly.
Cleanvac automatic carpet washing machine is a brand that has succeeded in producing a machine that will enable you to save time, space, labor, electricity, water and detergent in every sense of your business.
CLEANVAC products always offer you the best price performance.
Carpet washing machine prices will not tire you all the time and our machines will be just as powerful.
Always the optimal combination of quality products in cooperation with CLEANVAC / DASS.
More than 40 years of experience, export to 46 different countries of the world with many of our colleagues who are experts in their fields and hundreds of machines - over 100 product types, models and options to meet your every need, and thousands of satisfied customers.
User Comments
FAQ
Can We Adjust Detergent Amount in Full Automatic Carpet Washing Machines? |
The amount of detergent can be adjusted in full automatic carpet washing machines. In this way, you can save consumption or use it in accordance with the concentrated structure of the carpet washing shampoo you use. |
How is Pressure Adjusted in Automatic Carpet Washing Machines? |
In the Automatic Carpet Washing Machine, the pressure setting can be made via the 10" touch automatic control panel. When the desired print is achieved, the washing process can be started. |
How Does the Scraper System Work in Carpet Washing Machines? |
Scraper system in carpet washing machines; It is carried out with 2 roller brushes, rubber scrapers and pressurized water nozzles. After the carpet is brushed, pressurized water throws behind 2 roller brushes that act as pile removal, and it removes the dirt from the carpet pile and pushes it out of the carpet with rubber stripping bands. Thus, it collects the hair and hairs that come to the surface, and the dirt that settles on the surface and is softened by brushing is reached by pressurized water and separated from where it is. |
Is there carpet pooler? |
The carpet pool is a standard part of these machines and is supplied with the carpet washing machine. The steel pool used in previous models is quite heavy and costly. For this reason, rotation plastic carpet pool is used in new type models. These carpet pools are quite durable. The capacity is exactly the same as the carpet soaking pools used in previous models. |
What is the Average Washing Capacity of the Automatic Carpet Washing Machine? |
Carpet washing capacity, which can vary in each model, can wash carpets between 250 m2 and 350 m2 depending on the type and speed of use. |
Is There a Under Washing Feature? |
The under washing feature is available in all the latest model carpet washing machines. This situation has eliminated the need to re-wash the back side of the carpet after the carpet washing process. |
Can we adjust the speed of the machine? |
It can be arranged according to the type of carpet supplied to the machine or the dirt density of the carpet. The speed of the carpets can be changed between 3 meters and 5 meters per minute. |
What are the Dimensions of Automatic Carpet Washing Machine? |
The dimensions of full automatic carpet washing machines are as follows; * 4.20 F Dimensions: 4700x2300x2000 mm * 3.20 F Dimensions: 3800x2300x2000 mm * 2.70 F Dimensions: 3200x2300x2000 mm |
Does Automatic Carpet Wash Machines comes with detergent tanks? |
Yes. Detergent tanks are offered with carpet washing machines. |
Do the Brushes in Carpet Washing Machines Turn in the Same Direction? |
In automatic machines, the brush direction can be reversed with the software system. You can program your work by deciding the brush rotation direction on the panel. |
Pressure Adjustment Automatic or Pneumatic? |
In our full automatic carpet washing machines, the pressure adjustment is not pneumatic. Spring system pressure adjustment feature is available. Thanks to the springs, there is no strain and the carpet is not damaged. |
Is There Rinsing In Automatic Washing Machines? |
The rinsing system is available in all models except BASIC carpet washing machines. |
What is Brush Cycle in Automatic Machines? |
In full automatic carpet washing machines, the brush rotation speed is set as 140 RPM. This default setting comes with factory production. If it is lower or faster, it may fold the carpet, not apply the necessary force to the stain or wear it out. |
What is the size of the brush bristles used in automatic machines? |
In full automatic carpet washing machines, the brush rotation speed is set as 140 RPM. This default setting comes with factory production. If it is lower or faster, it may fold the carpet, not apply the necessary force to the stain or wear it out. |
What is the Working Sound Level of Full Automatic Carpet Washing Machines? |
The sound level of full automatic carpet washing machines works with less noise compared to all other machines in the market. The main reason for this is the quality of the material used, the durability of the electrical panels and motors, and their suitability for heavy duty, as we explained in the price difference question. |
